NILES-SIMMONS N40 MC TurnMill

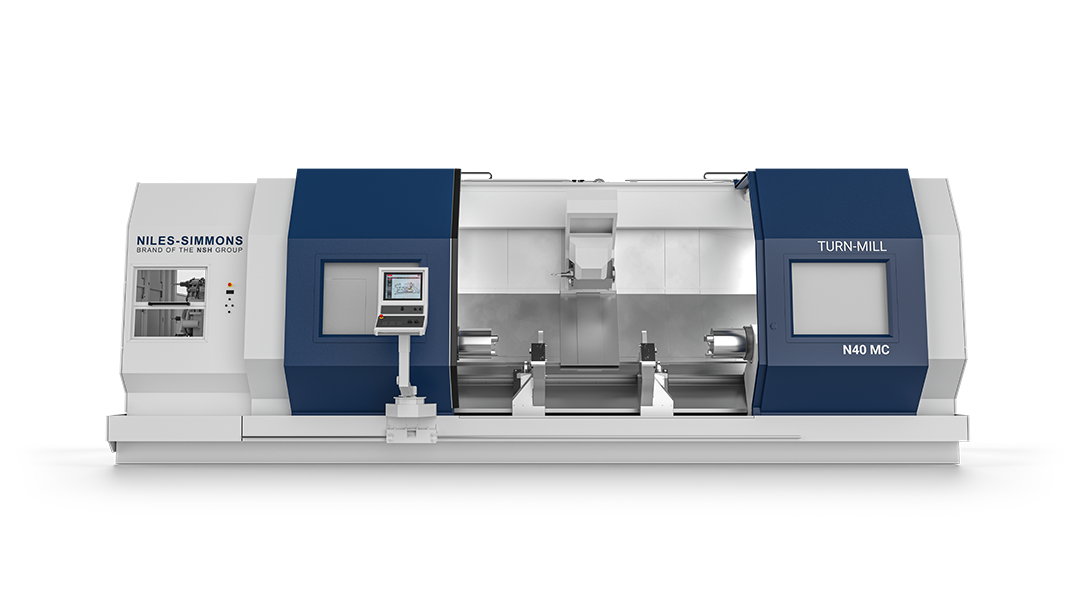

The NILES-SIMMONS N40 MC TurnMill is a precision multi-axis, multifunction turning-boring-milling machining center for work pieces up to 7500 mm in length.

The CNC control system is a SINUMERIK 840 D sl, with Siemens NX Programming and Support supplied in partnership with Empire Dynamics.

The NILES-SIMMONS N40 MC TurnMills are the optimal solution for complex part machining operations. The MC-Series utilize one set-up / “closed door machining” to eliminate the need for multiple machining centers, decrease production time, and increase output and safety.

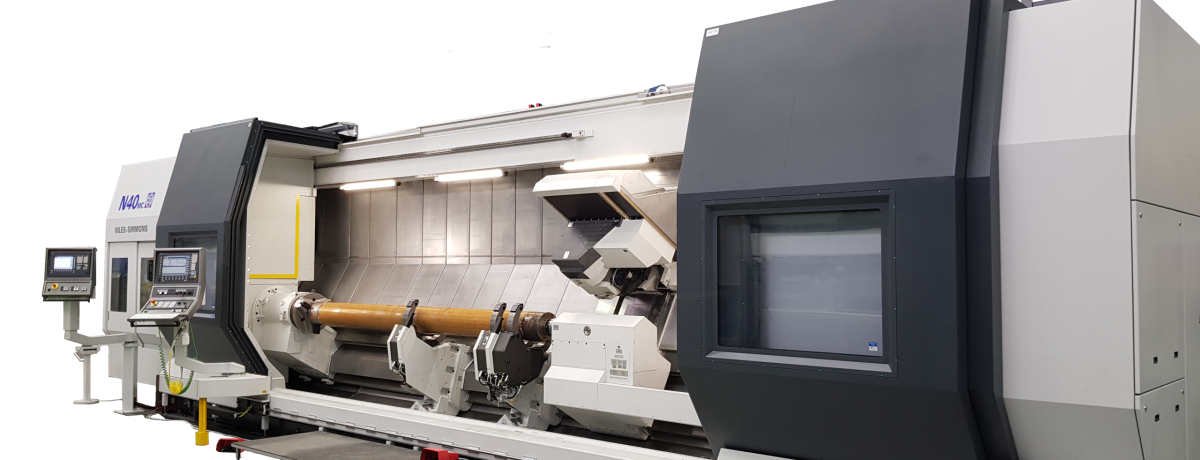

Niles-Simmons N40 MC millturn machining center

Machine Specifications

Download the NILES-SIMMONS N40 MC product data sheet — for the full machine specification, please contact the Machine Sales team.

Maximum Swing Diameter

1100 mm

Turning Length Range

1000-7500 mm

Number of Tools per Unit (Range)

48-144

Spindle Type

A15 | B20

Spindle Speed Range

0-1800 rpm

Maximum Spindle Power

87 kW

Slide Travel (X-Axis)

1075 mm

Slide Travel (Y-Axis)

700 mm

Tool Systems

HSK100T | HSK 63T | Capto C6* | Capto C8*
*optional systems

Maximum Driving Power

50 kW

Speed Range

0-10000 rpm

Maximum Torque

400 Nm

We're here to help

The NSH USA Customer Service Center (CSC) is here to support you and your machine. As the original equipment manufacturer (OEM), we are ideally suited to keep your machine productive and operating safely.

We offer:

OEM Spare & Replacement Parts
New or Upgrade Services
Service & Inspections
Training

Already have a NILES-SIMMONS N40 MC?

Contact the NSH USA Customer Service Center today for support.
