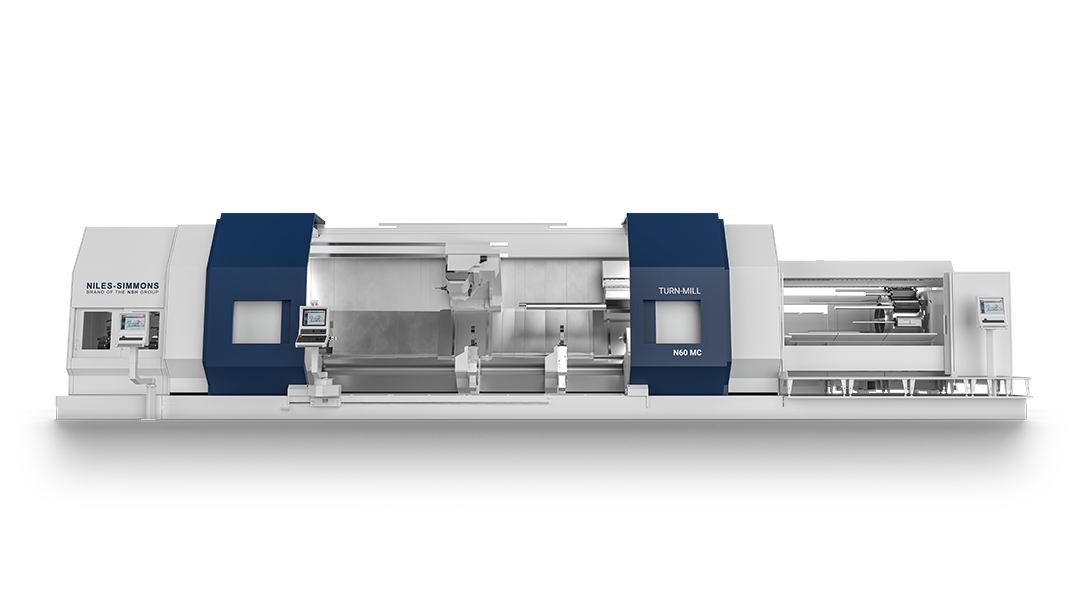

NILES-SIMMONS N60 MC TurnMill
The NILES-SIMMONS N60 MC TurnMill is a precision multi-axis, multifunction turning-boring-milling machining center for work pieces up to 7500 mm in length.
The CNC control system is a SINUMERIK 840 D sl, with Siemens NX Programming and Support supplied in partnership with Empire Dynamics.
The NILES-SIMMONS N60 MC TurnMills are the optimal solution for complex part machining operations. The MC-Series utilize one set-up / “closed door machining” to eliminate the need for multiple machining centers, decrease production time, and increase output and safety.
Machine Specifications
Download the NILES-SIMMONS N60 MC product data sheet — for the full machine specification, please contact the Machine Sales team.
Maximum Swing Diameter
1500 mm
Turning Length Range
2000-7500 mm
Number of Tools per Unit (Range)
48-144
Spindle Type
A15 | B20
Spindle Speed Range
0-1400 rpm
Maximum Spindle Power
115 kW
Slide Travel (X-Axis)
1070 mm
Slide Travel (Y-Axis)
900 mm
Tool Systems
HSK100T | Capto C8*
*optional systems
Maximum Driving Power
80 kW
Speed Range
0-5500 rpm
Maximum Torque
800 Nm
We're here to help
The NSH USA Customer Service Center (CSC) is here to support you and your machine. As the original equipment manufacturer (OEM), we are ideally suited to keep your machine productive and operating safely.
We offer:
Already have a NILES-SIMMONS N60 MC?
Contact the NSH USA Customer Service Center today for support.
